SVS Sample Data - Spray Nozzle Virtual Laboratory System


1.	View an animated simulation of the spray configuration you specify		2.	View your spray array from any viewpoint simply by moving your mouse		3.	A flow density graph can also be generated from your specifications (About the graph)

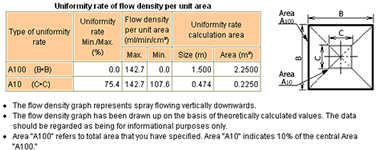

4. The uniformity rate of the flow density of your specified configuration will be calculated automatically.

SVS virtual experiments are offered under the following conditions:

The animated spray pattern produced herein should be regarded as a visual approximation of reality.

Flow density graphs and uniformity rate are based on theoretical values defined by NNC, and should be regarded as being for informational purposes only.

The information displayed herein does not apply to any specific nozzle nor to any particular manufacturer's products.

The sprayed fluid is assumed to comprise a single liquid (water).
